An Important Issue You Should Know About Porcelain Slab Loading.
Since big porcelain slab is more and more popular, there are many buyers are worried to order the big slab,
as it’s easy to broken, now we’d like to show you How we pack it and how to load it safety.
Porcelain slab size 1600x3200x12mm( 63″x126″)
![](//v4-upload.goalsites.com/688/1692264044_图片1.png)

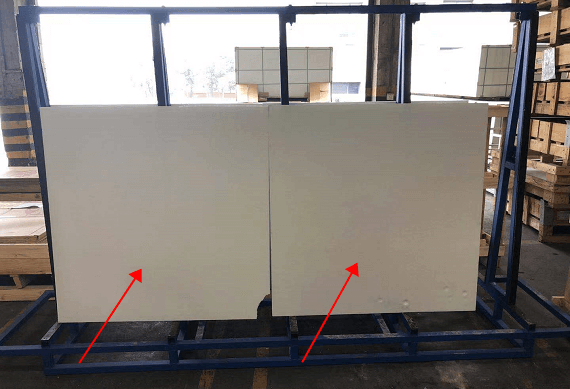

lay the foamed panel size 1600x800x15mm density:21KG/m3
![](//v4-upload.goalsites.com/688/1692264067_图片2.png)

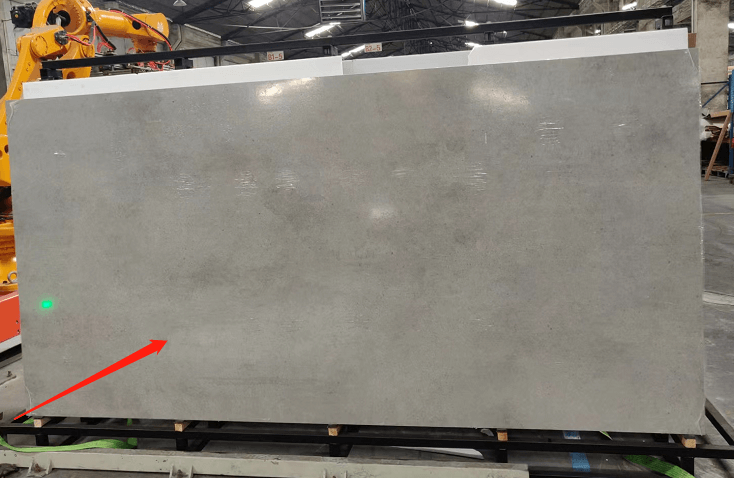

11pcs per side of the A-frame, 22pcs each A-frame
![](//v4-upload.goalsites.com/688/1692264089_图片3.png)

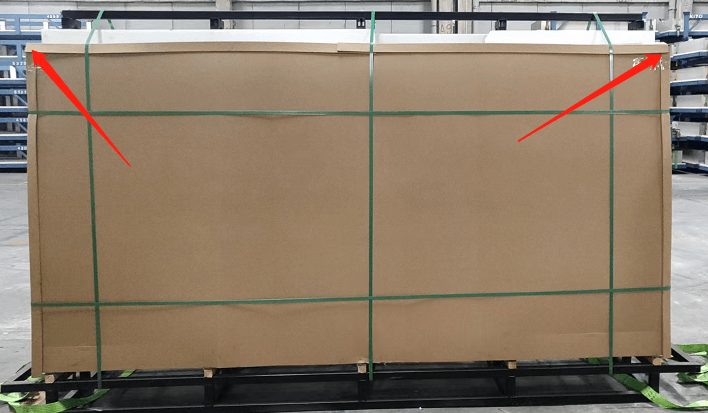

cover 3 layers of corrugated cardboard, fasten with strips
![](//v4-upload.goalsites.com/688/1692264162_图片4.png)

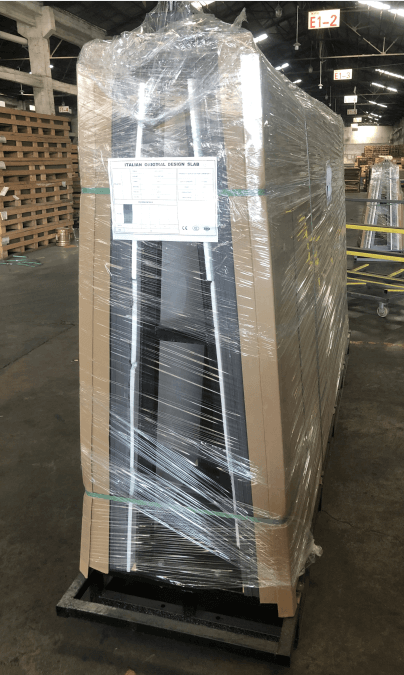

finally: wrap with plastic film
![](//v4-upload.goalsites.com/688/1692264193_图片5.png)
![](//v4-upload.goalsites.com/688/1692264211_图片6.png)
3 pallets neck and neck, inflatable bag
There are 3 pallets, 66pcs, 337.92sqm in 1x20’GP
There are 8 pallets, 176pcs, 901.12sqm in 1x40’GP
Porcelain slab size 1600x3200x12mm( 63″x126″) usage:
Kitchen counter top
Bathroom vanity top
In/ Outdoor table
Outdoor furniture
Stair / steps
Since big porcelain slab is more and more popular, there are many buyers are worried to order the big slab,
as it’s easy to broken, now we’d like to show you How we pack it and how to load it safety.
Porcelain slab size 1600x3200x12mm( 63″x126″)
Size(mm) | Box | Pallet | |||||
PC | Sqm | G.W./Kg | Pcs | Sqm | Plt weight (kg) | G.W./Kg | |
3200x1600x12 | / | 5.12 | 145 | 22 | 112.64 | 300 | 3490 |

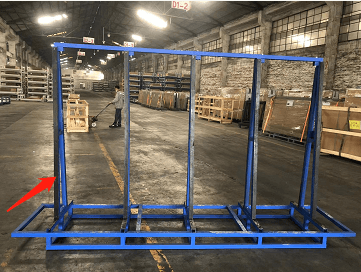

- One A-frame : 22pcs, 112.64sqm
![](http://v4-upload.goalsites.com/688/1692264044_图片1.png)
lay the foamed panel size 1600x800x15mm density:21KG/m3
![](http://v4-upload.goalsites.com/688/1692264067_图片2.png)
11pcs per side of the A-frame, 22pcs each A-frame
![](http://v4-upload.goalsites.com/688/1692264089_图片3.png)
cover 3 layers of corrugated cardboard, fasten with strips
![](http://v4-upload.goalsites.com/688/1692264162_图片4.png)
finally: wrap with plastic film
![](http://v4-upload.goalsites.com/688/1692264193_图片5.png)
Pallet type | Plt Size | Containe20’ GP | |||
MM | Plt | Pcs | Sqm | G.W. | |
A-frame | 3300x1600x750 | 3 | 66 | 337.92 | 10470 |
![](http://v4-upload.goalsites.com/688/1692264211_图片6.png)
3 pallets neck and neck, inflatable bag
There are 3 pallets, 66pcs, 337.92sqm in 1x20’GP
Pallet type | Plt Size | Container 40’ GP | |||
MM | Plt | Pcs | Sqm | N.W (kg) |
|
A-frame | 3300x1600x750 | 8 | 176 | 901.12 | 25520 |
Porcelain slab size 1600x3200x12mm( 63″x126″) usage:
Kitchen counter top
Bathroom vanity top
In/ Outdoor table
Outdoor furniture
Stair / steps
